Model NO.
Carbide End Mills
Quantity:

Detall Information

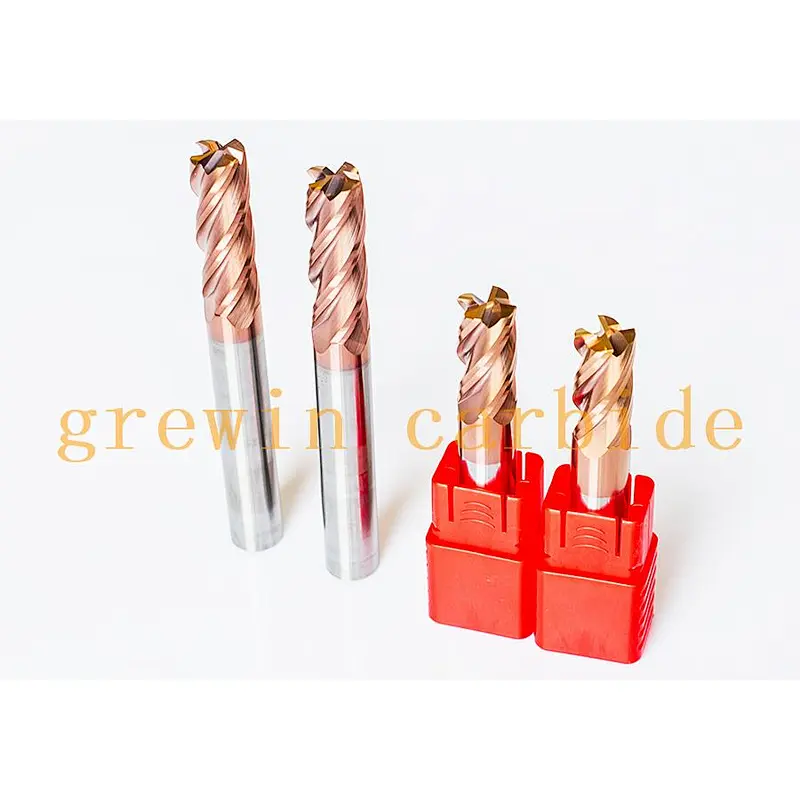

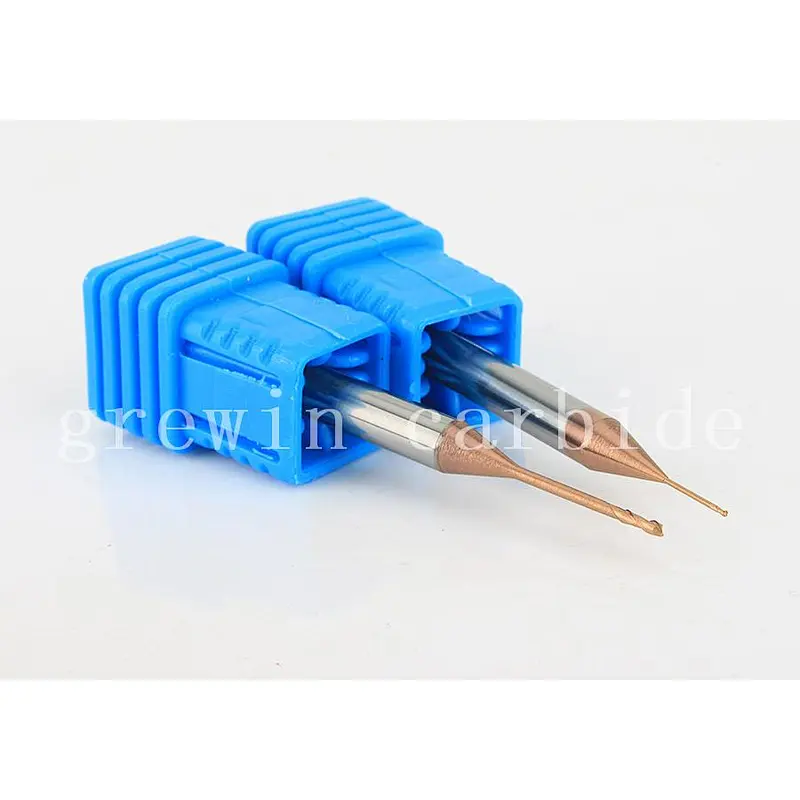

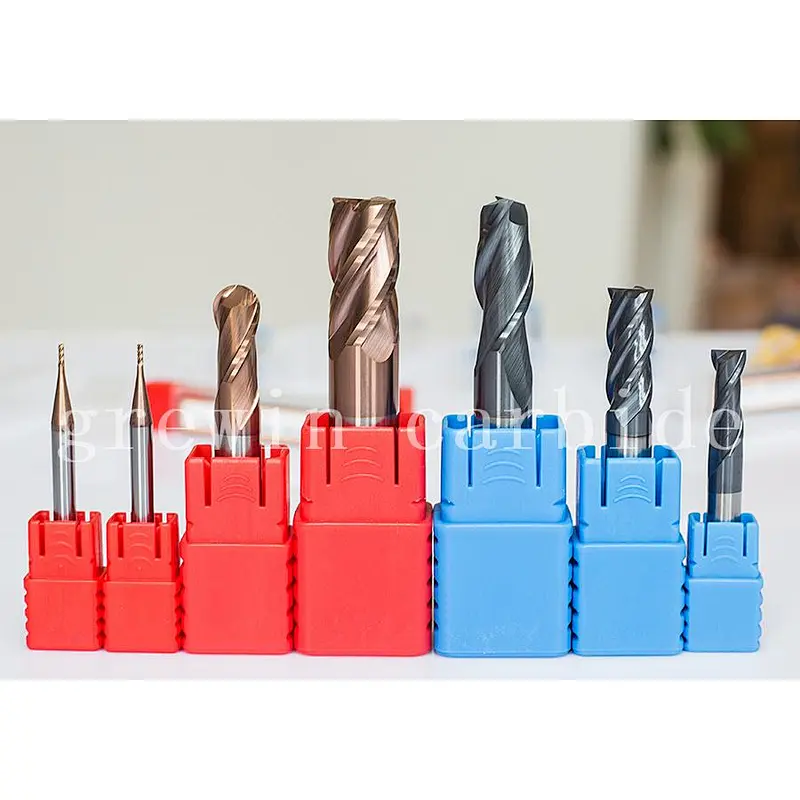

Description of Carbide End Mills

Item

Carbide End Mill

Brand

GW

Materials

tungsten carbide

Flutes

2/3/4/6 flutes

HRC

45/50/55/65

Coating

AlTiN /TiAIN/TiSiN/Nano

Choice

square, ball nose, aluminum, corner radius, roughing, micro and long neck from 1T to 6T

Helix Angle

35/45

Suitable materials

45 steel, cast iron, tool steel

Suitable Machne

CNC center, Engraving machine, High speed machine, Grinding machine

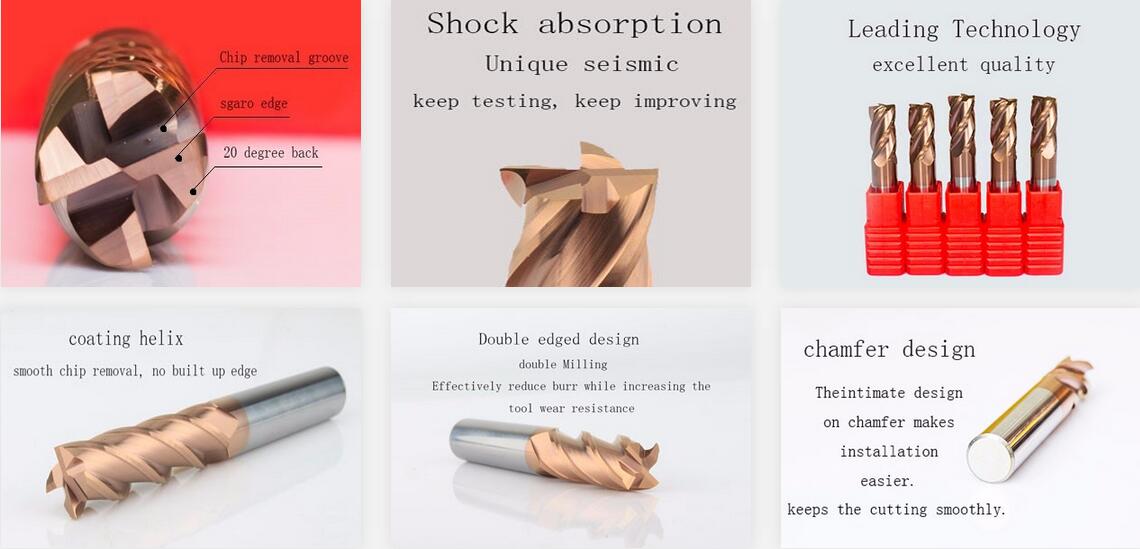

Unique sharp edge with 20 degrees back angle, to achieve the effect of shock absorption, cutting process stability.
cutting process stability. The deep chip removal groove and the big spiral angle ensure the smooth chip removal. Using the new ultra-fine particle tungsten carbide rod with high hardness and strength which make the end mills in perfect performance.

Coating Sheet



AlTiN

TiAIN

TiSiN

Nano

Hardness(HV)

3200

2800

3600

42(GPA)

Thickness(UM)

2.5-3

2.5-3

3

3

Oxidation Temp(°)

900

800

1000

1200

Friction Coeffient

0.3

0.3

0.45

0.4

Color

Black

Violet

Copper

Blue

Send Message

* clear input
*

Related Products

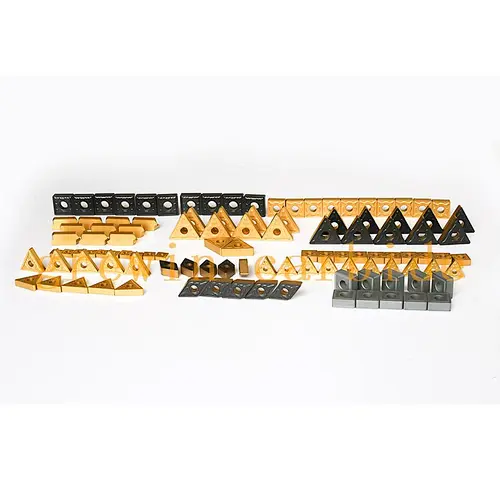

Model NO. Turning and Milling insert
Model NO. Carbide Twist Drills

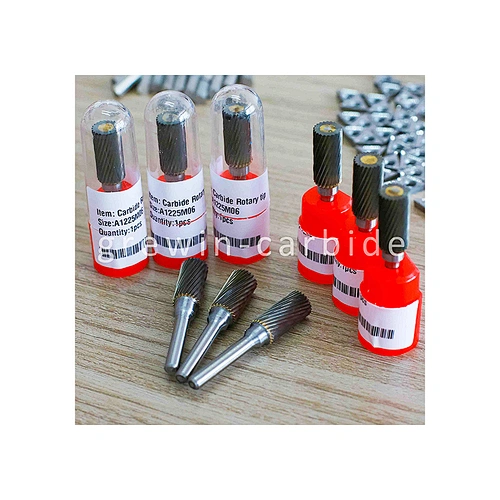

Model NO. Carbide Rotary Burr
